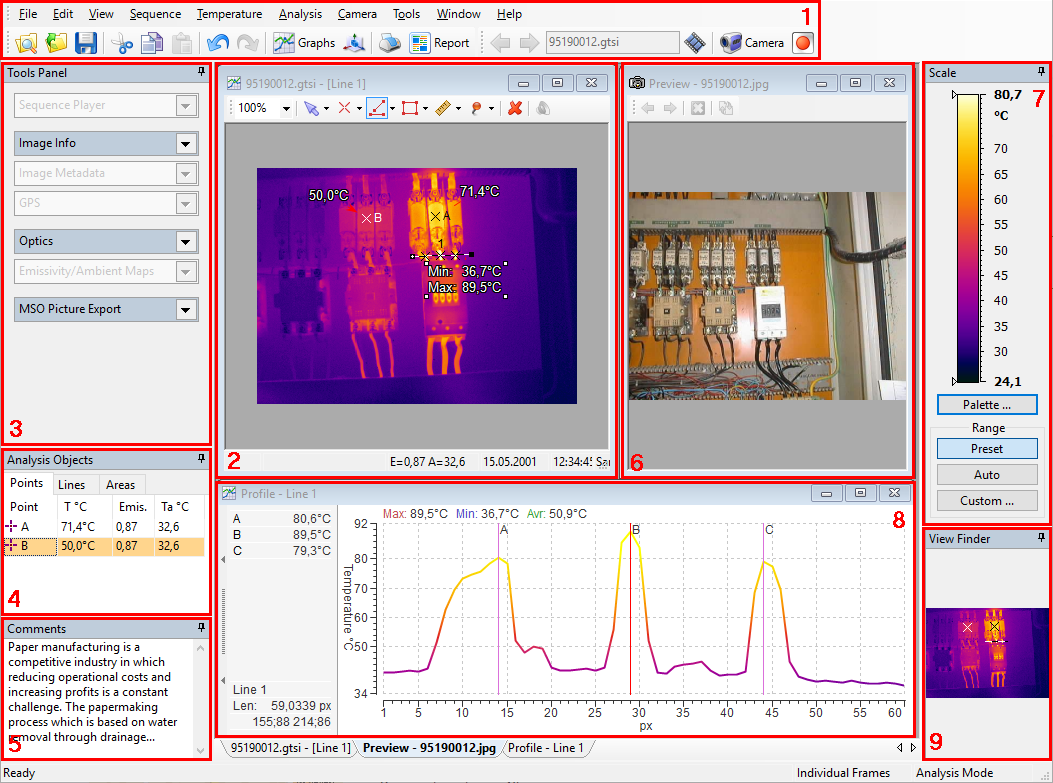

IRT Analyzer application's main window consists of the following items:

§Main menu and toolbar (1).

§IR image window (2): displays the infrared image with analysis objects.

§Tools Panel (3): contains list of dialogs and information windows allowing to change active image properties or perform some action.

§Analysis Objects window (4): contains information about all analysis objects, such as spot values, average, minimum, maximum values, and others.

§Comments window (5): text comments.

§Preview window (6): this window can display corresponding visual image or also another infrared image.

§Temperature scale (7): shows relation between color and temperature values.

§Diagram window (8): displays a graph for the active object, like profile, histogram or trend.

§View Finder (9): always displays full IR image preview, this is helpful when main IR image is zoomed.

Positions of all windows are not fixed, windows can be moved and rearranged the way you like.

Interface language

IRT Analyzer is translated into several languages. By default, the language that corresponds to your OS system language is selected. You can also select another language.

·Choose main menu 'File | Language'.

·Select preferred language from the list and click OK.

You will be prompted to re-run the application, because newly selected language can be applied only during the start of the program.
