The upper half of the measurement window is called Main view. It represents the actual thermal state of the kiln shell.

There are four basic views of the kiln shell:

1.Two-dimensional infrared view (Temperature map 2D);

2.Three-dimensional view of the whole kiln in motion (Virtual kiln 3D);

3.Three-dimensional view of the kiln interior (Kiln section 3D);

4.Three-dimensional view from the kiln end (Kiln end-view).

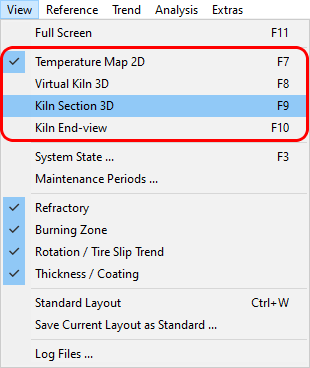

To switch between these view modes, use appropriate toolbar buttons or commands in the View main menu:
