You can create several image panels and define condition when to update which panel. For example, one camera can be used to update several image panels. First panel is updated when the first part is being checked, second when the second part is in view and so on.
Before you can setup multi-image composition, you need to start image acquisition for all cameras that will be used. |

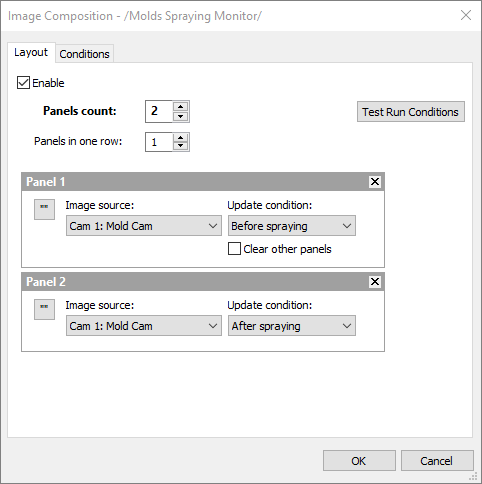

To define image panels and their update conditions use main menu item 'Automation | Image Composition'.
·Firstly, you need to set how many image panels you want to use.
·Then you need to define which camera is used as image source for the panel. One camera can serve as image source for several panel.
·Finally, you need to select conditions to define when each panel is updated.
Image composition uses its own set of conditions, not the conditions from the automation mode. Temperature conditions cannot be used to update image panels. |
Select 'Conditions' tab to define conditions for image panels.
Conditions are defined exactly in the same way as conditions in the automation mode.
