To setup burning zone monitoring you need to define the device that is looking into the burning zone and measures its temperature. This device can be a pyrometer (with or without video camera) or an IR camera. In case of IR camera the maximum temperature found on the image is used as the temperature value of the burning zone.
Burning zone monitoring device internal temperature (Instrument temperature) is checked in the same way as the internal temperature of the other devices. |

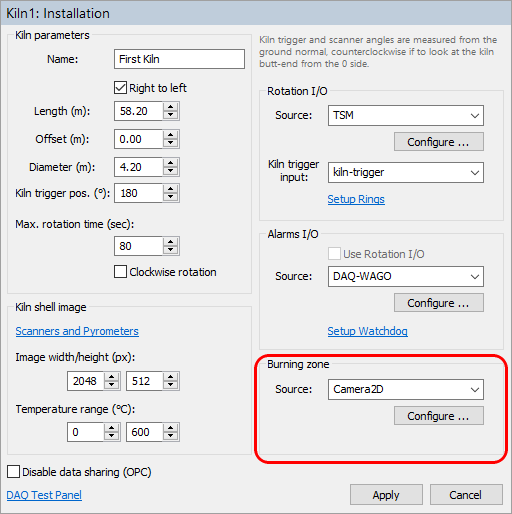

Configuration is done on the Installation page:
You need to select the source: Camera2D or Pyrometer and then define the communication parameters.
See Camera2D and Pyrometer topics.
To setup burning zone alarms, use Burning zone alarms button on Alarms configuration page.
